Home 2009 Volkswagen Passat Komfort 2.0L L4 - Gas Structural Components & Rails

Structural Components & Rails for 2009 Volkswagen Passat

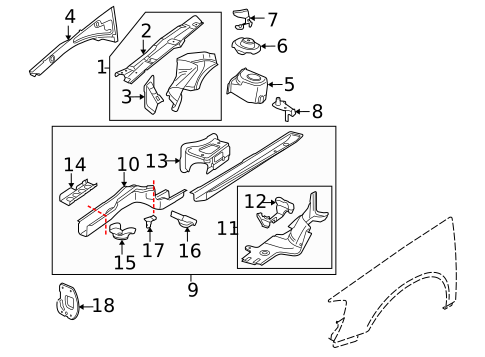

Structural Components & Rails for 2009 Volkswagen Passat #0

1

10

11

12

13

14

15

16

17

18

2

3

4

5

6

7

8

9

No.

Part # / Description / Price

Price

1

3C0805116A - Body: Apron Assembly for Volkswagen: Passat Image

Apron Assembly

Volkswagen

Volkswagen

Positions: Right

1

3C0805115 - Body: Apron Assembly for Volkswagen: Passat Image

Apron Assembly

Volkswagen

Volkswagen

Positions: Left

2

3C0809145A - Body: Upper Reinforced for Volkswagen: Passat Image

Upper Reinforced

Volkswagen

Volkswagen

Positions: Left

Notes: PARTS: Part included with apron assembly.

2

3C0809146A - Body: Upper Reinforced for Volkswagen: Passat Image

Upper Reinforced

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with apron assembly.

3

3C0810812 - Body: Front Extension for Volkswagen: CC, Passat Image

Front Extension

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with apron assembly.

4

3C0810136A - Body: Upper Rail for Volkswagen: Passat Image

Upper Rail

Volkswagen

Volkswagen

Positions: Right

4

3C0810135 - Body: Upper Rail for Volkswagen: Passat Image

Upper Rail

Volkswagen

Volkswagen

Positions: Left

5

3C0809122 - Body: Strut Tower for Volkswagen: CC, Passat Image

Strut Tower

Volkswagen

Volkswagen

Positions: Right

5

3C0809121 - Body: Strut Tower for Volkswagen: CC, Passat Image

Strut Tower

Volkswagen

Volkswagen

Positions: Left

6

3C0809072 - Body: Strut Tower Reinforcement for Volkswagen: CC, Passat Image

Strut Tower Reinforcement

Volkswagen

Volkswagen

Positions: Right

6

3C0809071 - Body: Strut Tower Reinforcement for Volkswagen: CC, Passat Image

Strut Tower Reinforcement

Volkswagen

Volkswagen

Positions: Left

7

3C0823401A - Body: Strut Mount for Volkswagen: CC, Passat Image

Strut Mount

Volkswagen

Volkswagen

Positions: Left

8

3C0971360 - Body: Mount for Volkswagen: CC, Passat Image

Lower Mount

Volkswagen

Volkswagen

Positions: Left

9

3C0803092 - Body: Lower Rail Assembly for Volkswagen: CC, Passat Image

Lower Rail Assembly

Volkswagen

Volkswagen

Positions: Right

9

3C0803091 - Body: Lower Rail Assembly for Volkswagen: CC, Passat Image

Lower Rail Assembly

Volkswagen

Volkswagen

Positions: Left

10

3C0803105 - Body: Rail for Volkswagen: CC, Passat Image

Rail

Volkswagen

Volkswagen

Positions: Left

Notes: PARTS: Part included with lower rail assembly.

10

3C0803106 - Body: Rail for Volkswagen: CC, Passat Image

Rail

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with lower rail assembly.

11

3C0804105A - Body: Rear Reinforced for Volkswagen: CC, Passat Image

Rear Reinforced

Volkswagen

Volkswagen

Positions: Left

Notes: PARTS: Part included with lower rail assembly.

11

3C0804106B - Body: Rear Reinforced for Volkswagen: CC, Passat Image

Rear Reinforced

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with lower rail assembly.

12

1K0810811 - Body: Trans Mount Bracket for Volkswagen: CC, Eos, Golf, Golf R, GTI, Passat, R32, Rabbit Image

Bracket

Volkswagen

Volkswagen

Positions: Left

Notes: PARTS: Part included with rear reinforcement.

13

3C0802068 - Body: Engine Bracket for Volkswagen: CC, Passat Image

Engine Bracket

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with lower rail assembly.

14

3C0803230 - Body: Front Plate for Volkswagen: CC, Passat Image

Front Plate

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with lower rail assembly.

14

3C0803229 - Body: Front Plate for Volkswagen: CC, Passat Image

Front Plate

Volkswagen

Volkswagen

Positions: Left

Notes: PARTS: Part included with lower rail assembly.

15

3C0803128 - Body: Front Retainer for Volkswagen: CC, Passat Image

Front Retainer

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with lower rail assembly.

15

3C0803127 - Body: Front Retainer for Volkswagen: CC, Passat Image

Front Retainer

Volkswagen

Volkswagen

Positions: Left

Notes: PARTS: Part included with lower rail assembly.

16

3C0804056 - Body: Rear Retainer for Volkswagen: CC, Passat Image

Rear Retainer

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with lower rail assembly.

16

3C0804055 - Body: Rear Retainer for Volkswagen: CC, Passat Image

Rear Retainer

Volkswagen

Volkswagen

Positions: Left

Notes: PARTS: Part included with lower rail assembly.

17

1K0611845B - Body: Bracket for Volkswagen: Beetle, CC, Eos, Golf, Golf R, GTI, Jetta, Passat, R32, Rabbit Image

Bracket

Volkswagen

Volkswagen

Positions: Left

Notes: PARTS: Part included with lower rail assembly.

Description: 288mm. 312x25mm. Without red caliper. Brake hose. 312mm. 2021-22. 2020. Convertible,. Sedan from 1/05, wagon 2009 only,. Wagon, 2010-11,.

MSRP $10.06

$6.29

MSRP $10.06

$6.29

17

1K0611846B - Body: Bracket for Volkswagen: Beetle, CC, Eos, Golf, Golf R, GTI, Jetta, Passat, R32, Rabbit Image

Bracket

Volkswagen

Volkswagen

Positions: Right

Notes: PARTS: Part included with lower rail assembly.

MSRP $10.06

$6.29

MSRP $10.06

$6.29

18

1K0804182B - Body: End Plate for Volkswagen: CC, Eos, Golf, Golf R, GTI, Jetta, Passat, R32, Rabbit Image

Frame End Cap

Volkswagen

Volkswagen

Positions: Right

Description: Sedan from 1/05, wagon 2009 only,.

MSRP $51.38

$29.52

MSRP $51.38

$29.52

18

1K0804181B - Body: End Plate for Volkswagen: CC, Eos, Golf, Golf R, GTI, Jetta, Passat, R32, Rabbit Image

Frame End Cap

Volkswagen

Volkswagen

Positions: Left

Description: Sedan from 1/05, wagon 2009 only,. Wagon, 2010-11,.

MSRP $50.78

$29.17

MSRP $50.78

$29.17
